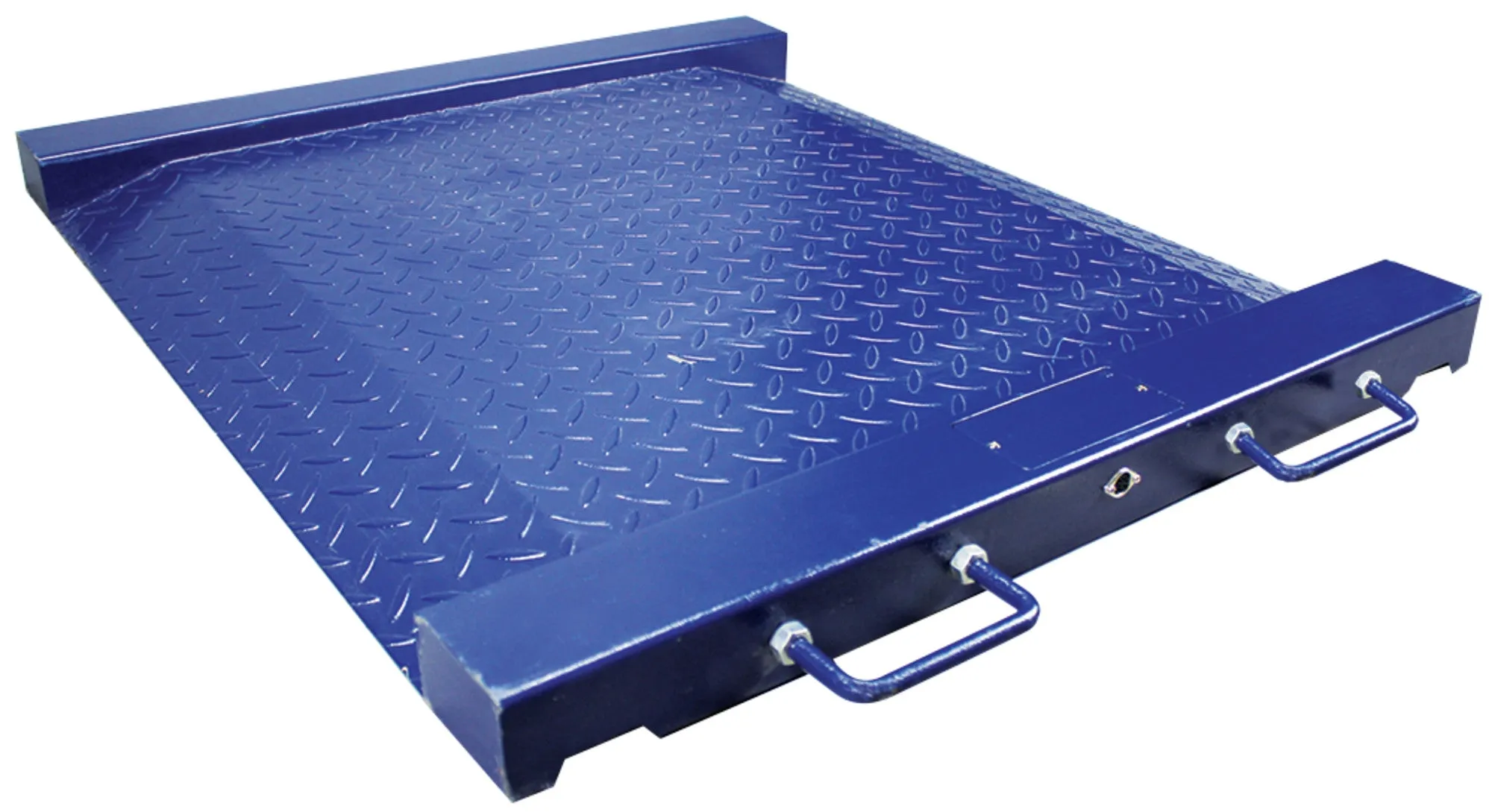

The PTM platform scale features a low-profile base and integrated ramps on both sides, offering smooth transitions from the floor to the platform. Suitable for use in many settings, the PTM is ideal for checking the weight of wheelchair occupants, and loaded dollies, barrels and drums. Its diamond plate surface provides good grip and a solid, steady weighing area. Handles and wheels enable easy portability in a warehouse or medical facility. Combine the PTM with the GK indicator or AE 403 indicator for a range of features and functions. The GK indicator allows a numeric tare value to be entered, while the AE 403 is IP67 rated for harsh environments. Features
Specifications
| Capacity | 1100lb / 500kg |
| Readability | 0.2lb / 0.1kg |
| Repeatability | 0.4lb / 0.1kg |
| Calibration | N/A |
| Stabilization Time | 2.0 |
| Pan Size | 29.9"x22.8" / 760x580mm |
| Linearity | 0.4lb / 0.2kg |
| Power Supply | N/A |
| Construction | Mild steel base |
| Operating Temperature | -10° to 40°C / 14° to 104°F |
| Net Weight | 78.2lb / 35.5kg |
| Overall Dimensions | 40.2"x31.6"x3" / 1020x803x75mm (wxdxh) |
| Approvals | N/A |
| Display Digit Height | 0" / 0mm |
| Features and Benefits |
|
